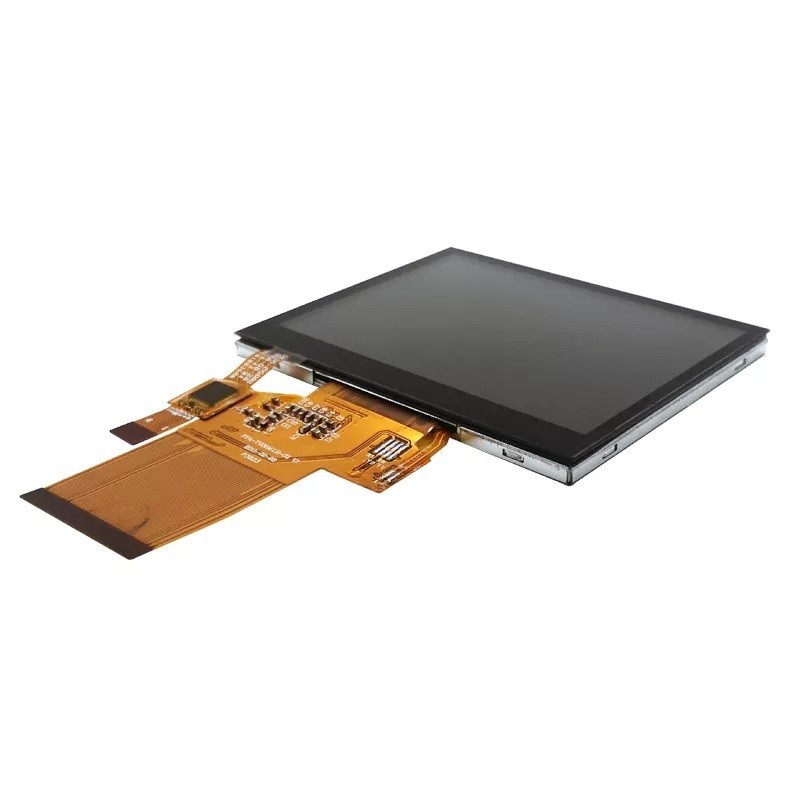

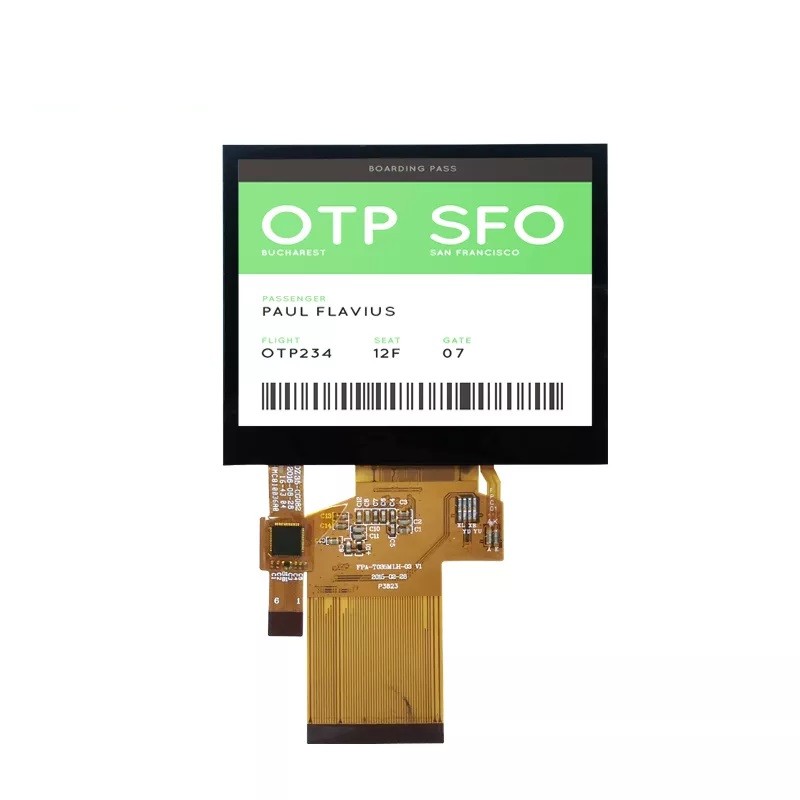

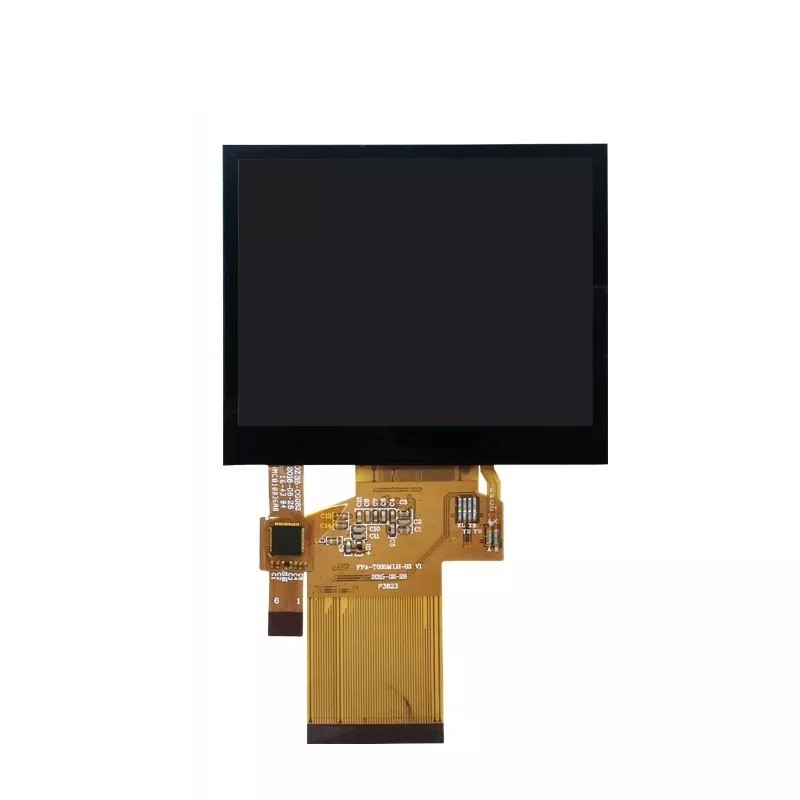

Home Products 3"-4" TFT LCD Screen 3.5 INCH LCD SCREEN RG035MLH-32CP 3.5 INCH 320*240 TFT LCD M
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 3.5 | inch | |
| Resolution | 320*240 | dots | |
| Pixel pitch | 0.219(H)*0.219(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 12 | o'clock | |
| Gray Scale Inversion Direction | 6 | o'clock | |
| Luminance | 480 | cd/m2 | |
|
Mechanical Characteristics |
LCM (W * H * D) | 76.84*63.84*4.80 | mm |
| Active Area (W * H ) | 70.08*52.56 | mm | |
| With /Without TP | With CTP | - | |
| LED Numbers | 6S-LED | pcs | |
| Operation temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | RGB888/54PIN | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 18.0 | V | |
| Color Depth | 16.7M | - | |
| LCM Driver IC | HX8238D | - | |
| CTP Dricer IC | FT5346 | - | |
