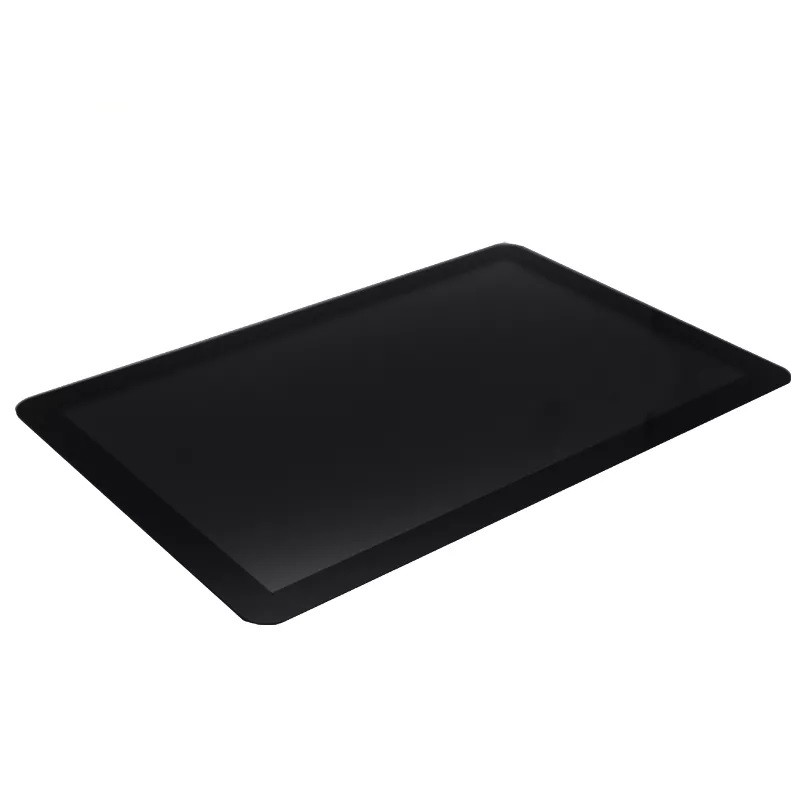

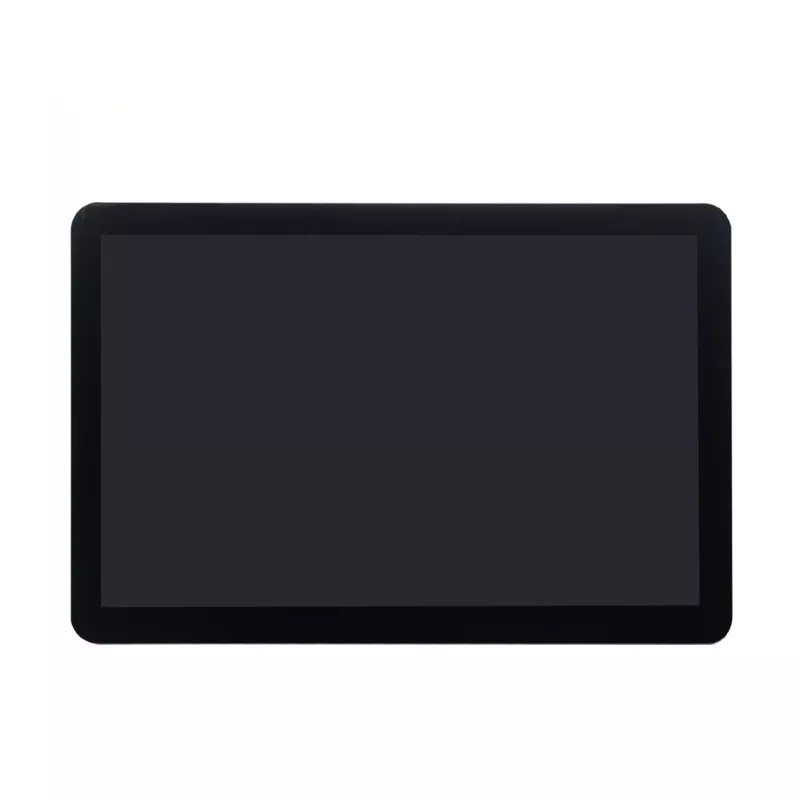

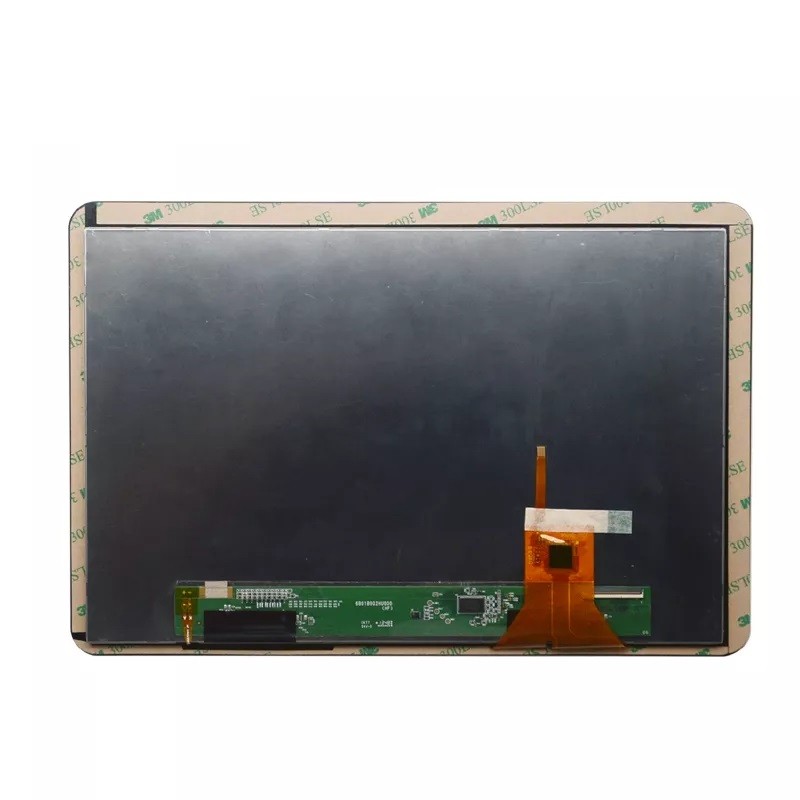

Home Products 7.0"-10.4" TFT LCD Screen 10.1 INCH LCD SCREEN RG101QIH-07CP 10.1 inch 1280*800 WXGA Fu
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 10.1 | inch |
| Resolution | 1280*800 | dots |
| Pixel pitch | 0.1695(H)*0.1695(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 250 | cd/m2 |
| LCM (W * H * D) | 245.50*163.60*5.00 | mm |
| Active Area (W * H ) | 216.96*135.60 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 3S10P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | - | - |
| CTP Dricer IC | GT928 | - |
