Product Description:
Product description: This driver board can drive
1. 1ch VGA signal input
2. 2ch AV signal input
3. 1ch H DMI signal input, and this IC supports H DMI1.2
4. 1-way reversing signal input
5. Support voltage input, work normally between 9-15V,
6. Standard single interface 3.5 backlight terminal, input voltage is 8.5V-39V, support 36 LED backlight groups to be combined at will (this voltage is for reference only, different screen voltages will have a little difference)
7. The driver board adopts a special circuit design, which can drive the LED backlight of about 39V, and supports a maximum power output of nearly 10W.
8. Support, TTL-50P standard interface (see AT070TN92,), support TTL-40P standard definition interface (see EJ070NA-01J)
9. Standard 5-key keypad interface, and supports two-color LED indicator display
10, support TTL signal output

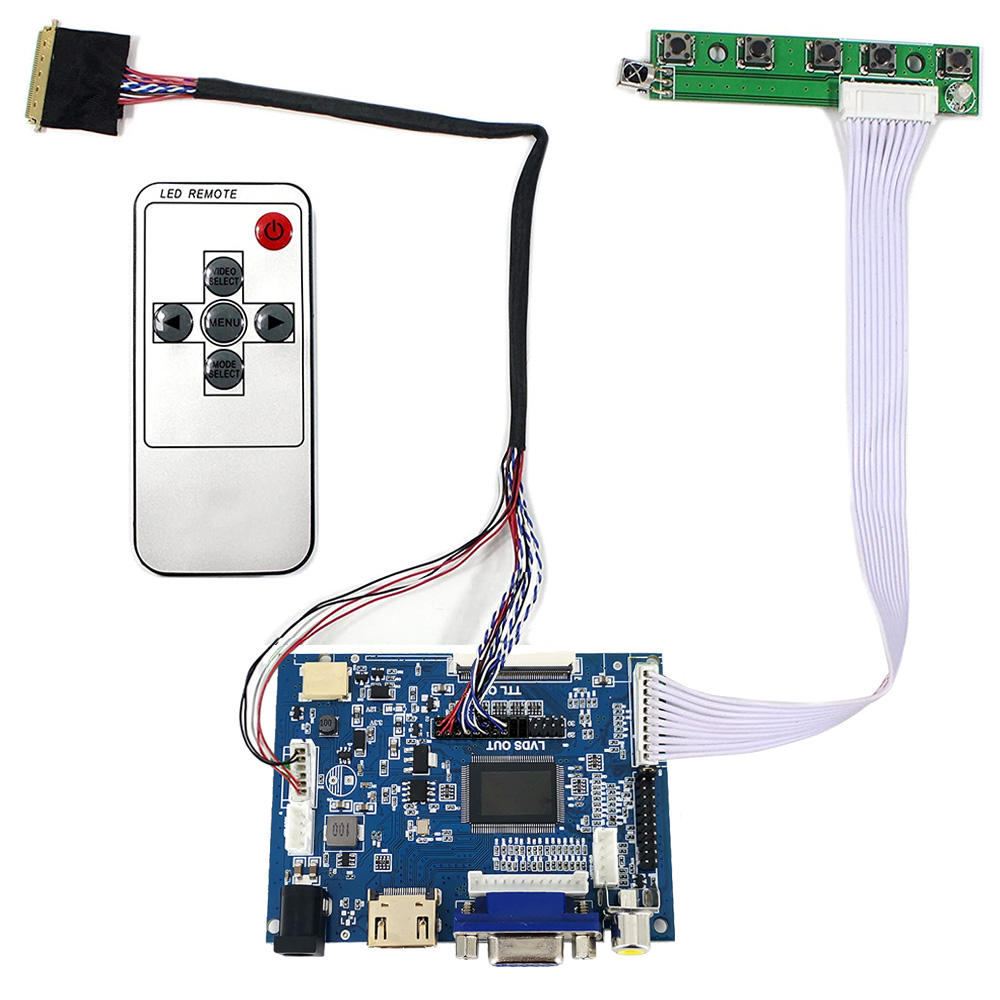

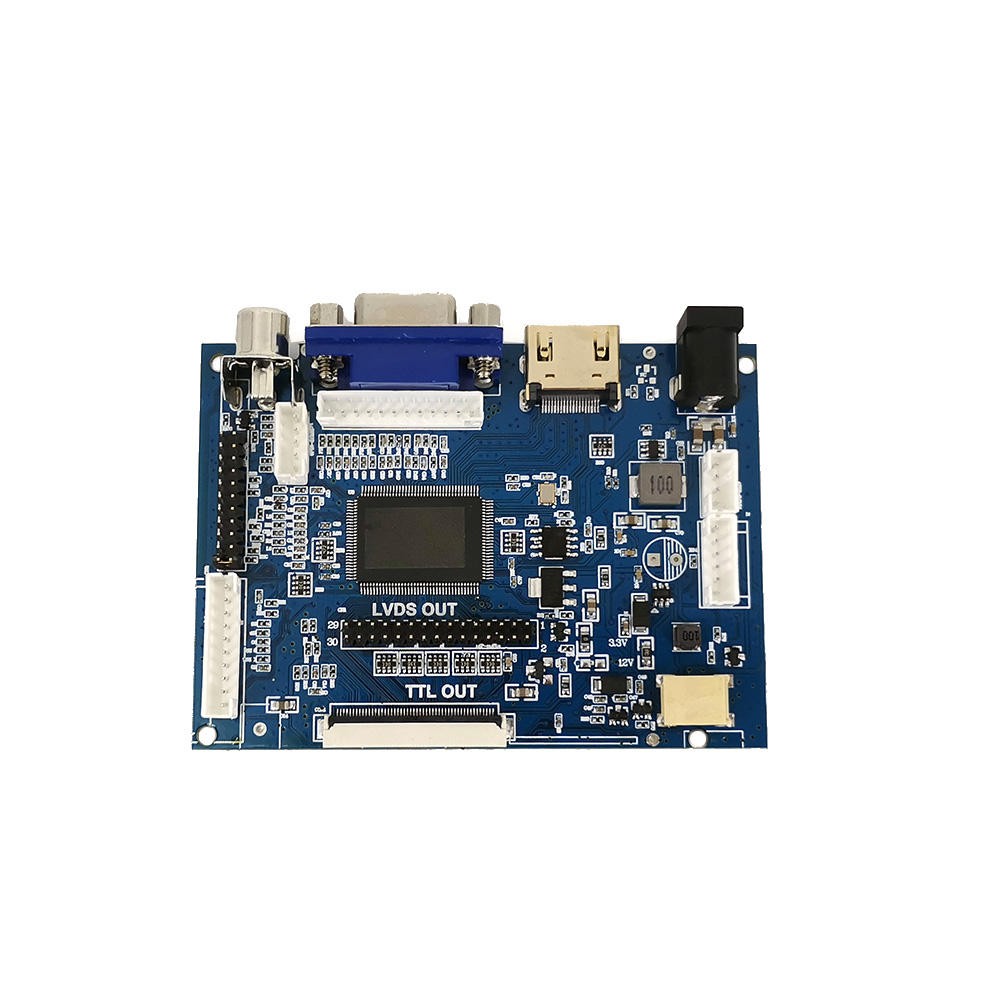

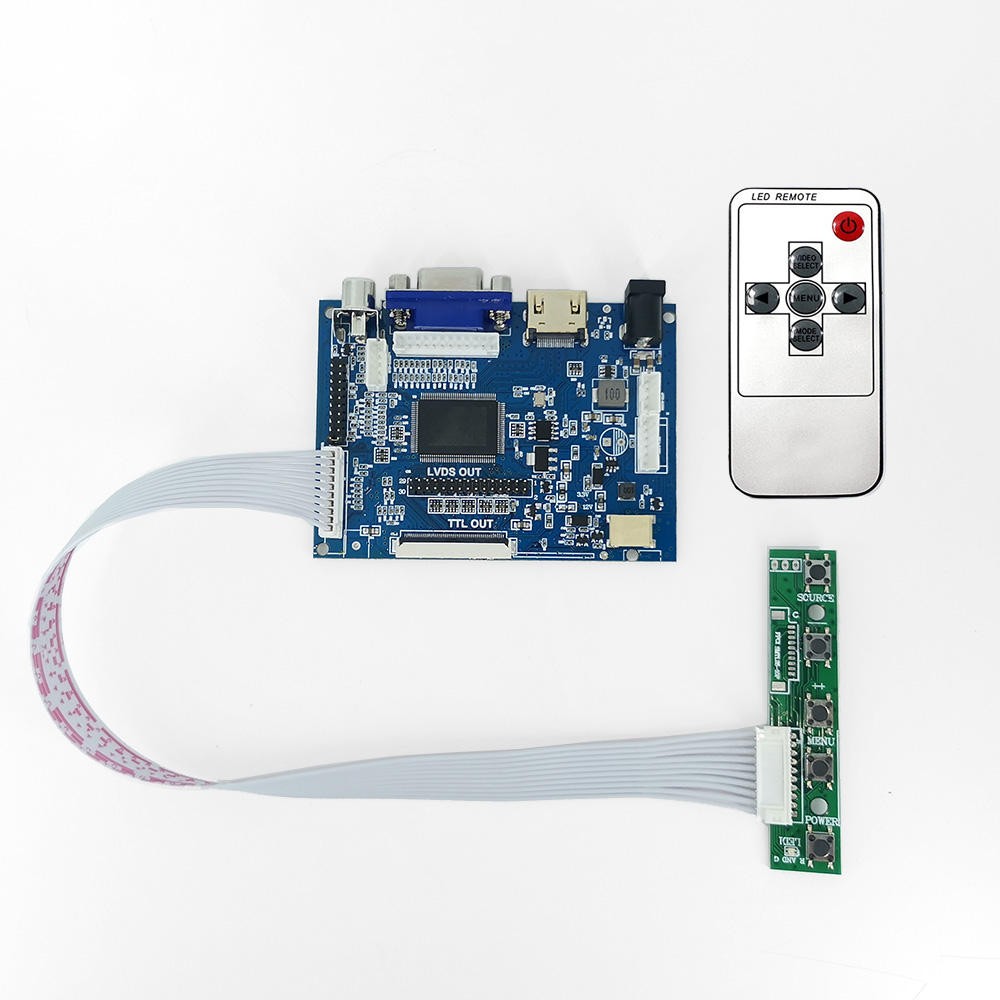

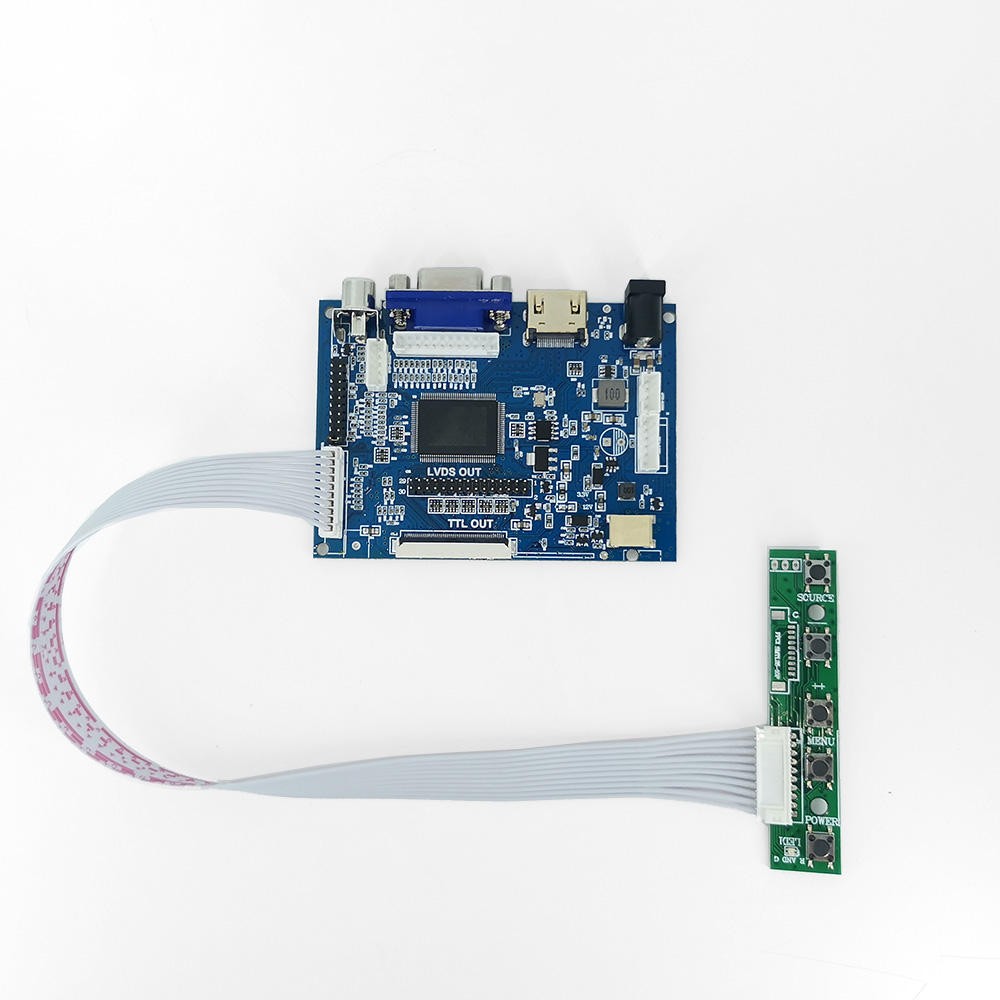

RGB 50pin LVDS 40pin LCD Controller board With H DMI VGA AV input

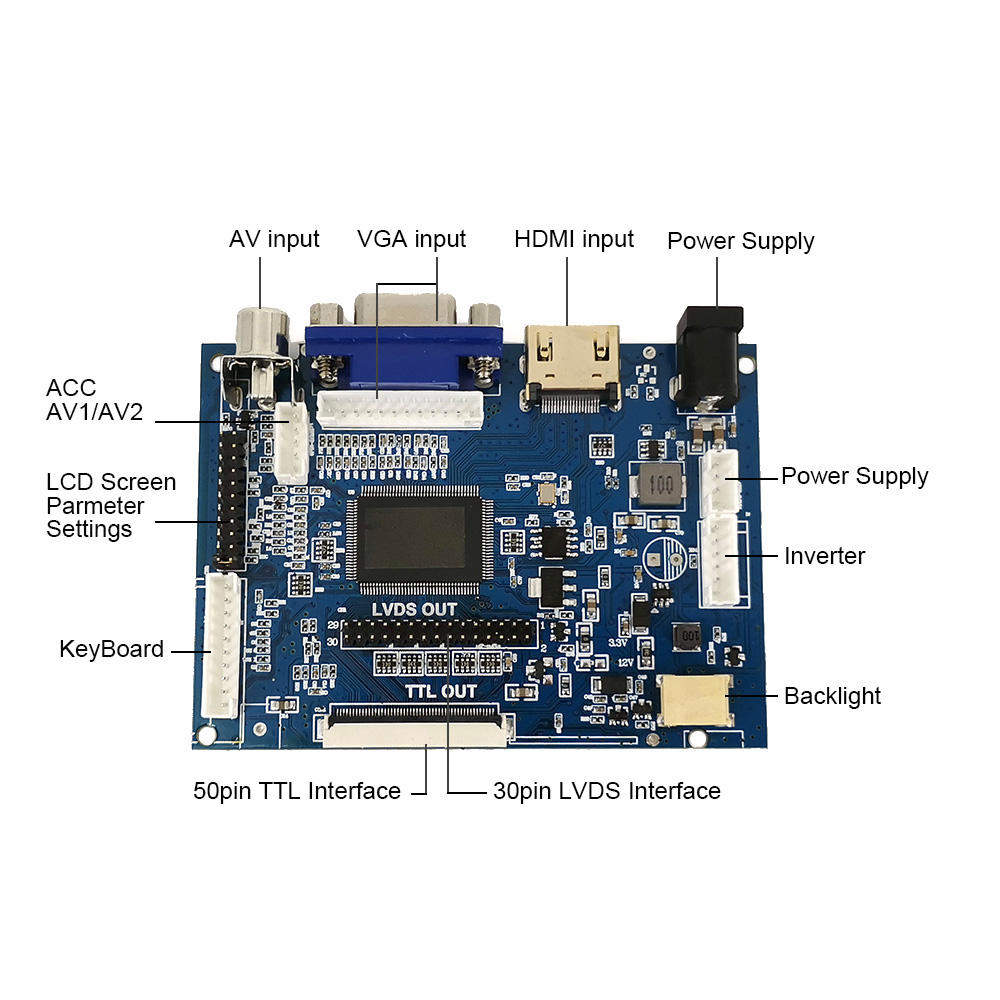

Interface description
50pin RGB TTL Support
AT070TN92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
AT070TN94, etc., general 50PIN interface TTL LCD screen
40PIN-LVDS definition interface can be directly driven EJ070NA01-1024X600 resolution
EJ080NA04B-1024X768 resolution
EJ101NA-02C-1280X800
EJ101NA-01G-1280X800
ZJ080NA-01
RGB 50pin LVDS 40pin LCD Controller board With H DMI VGA AV input
