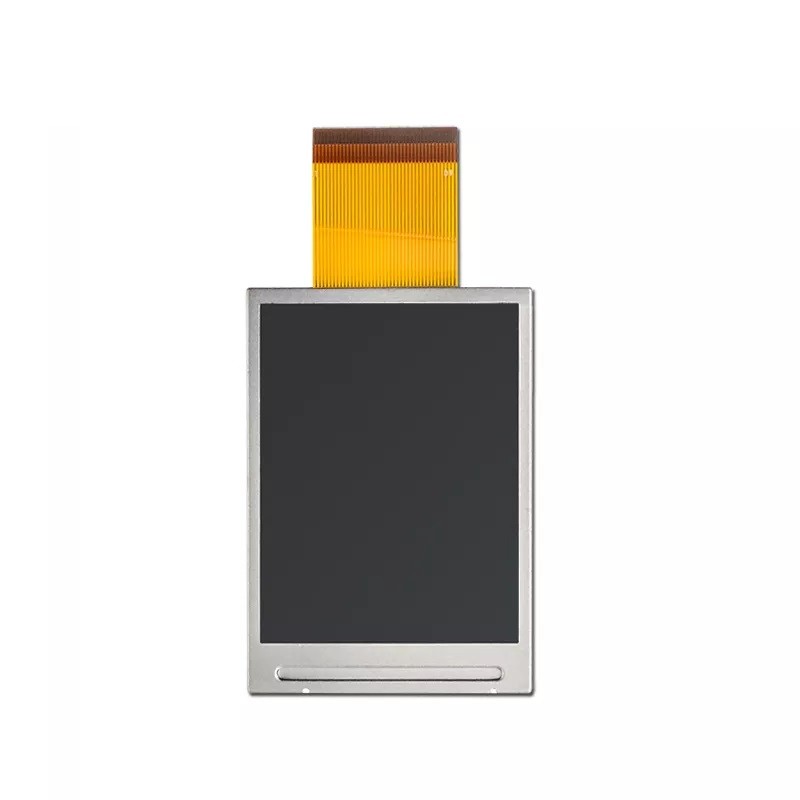

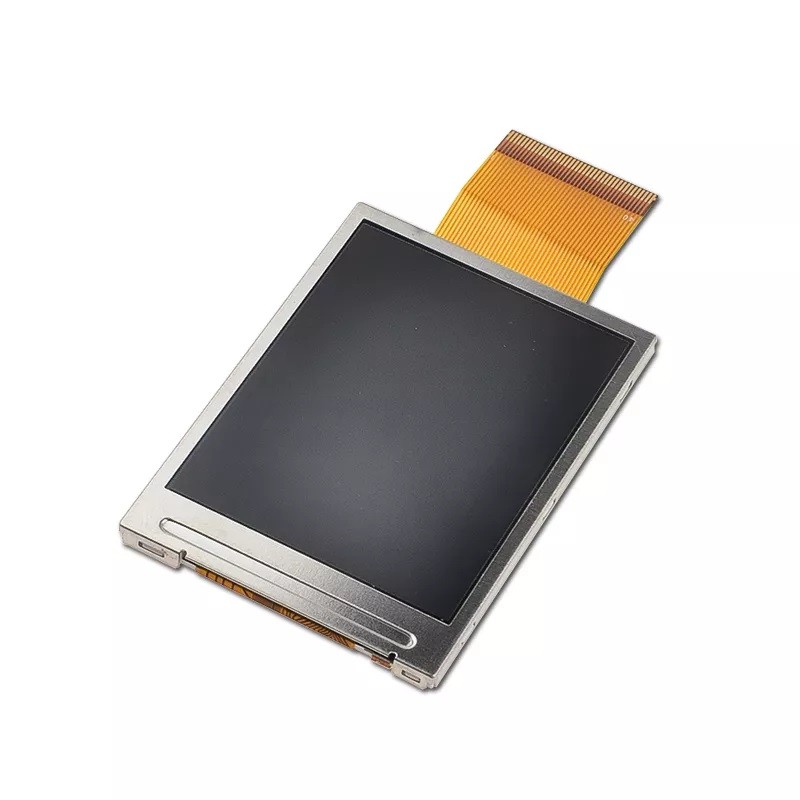

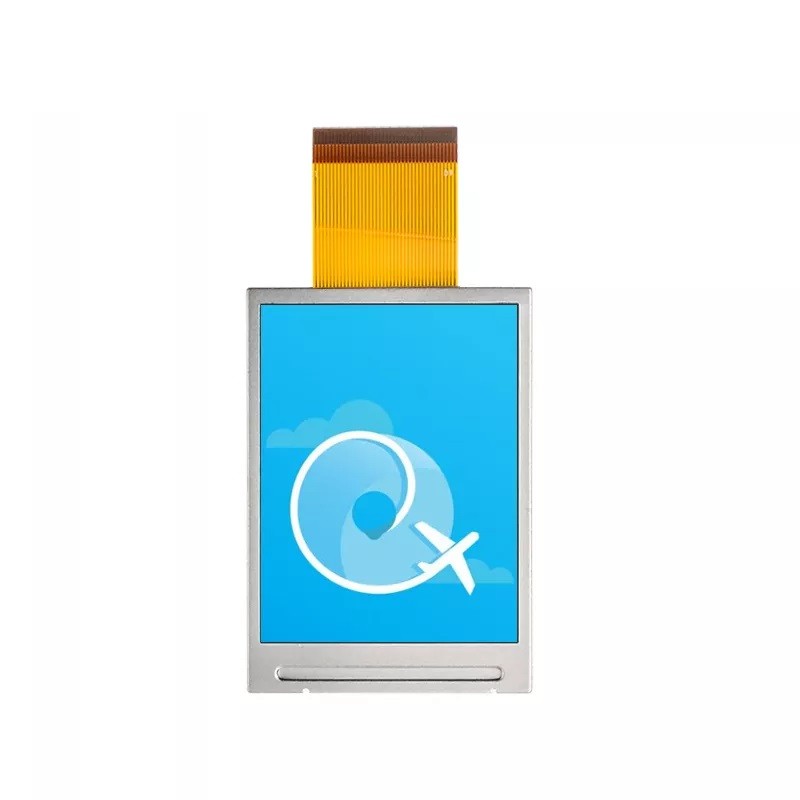

Home Products 2"-2.8" TFT LCD modules 2.2 INCH LCD SCREEN RG022TQI-04 2.2 inch QVGA 240X320 TFT Di
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 2.2 | inch |
| Resolution | 240*320 | dots |
| Pixel pitch | 0.141(H)*0.141(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 330 | cd/m2 |
| LCM (W * H * D) | 38.50*56.16*2.35 | mm |
| Active Area (W * H ) | 33.84*45.12 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 8/16BIT MCU | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9341V | - |
